• Durable powder coating throughout the unit provides lasting good looks while withstanding the punishing conditions of your shop.
  • Portable Unit eliminates spray booth bottlenecks
  • Independent Cassette adjustment for greater control and accuracy while curing and drying.
  • CAD design in all Cassette enclosures insures the most even heat distribution
  • Made in the USA

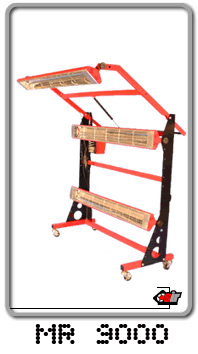

Need to cure complete panels? The Mantaray MR9000 delivers one of the largest curing areas available for portable curing. This system has three 3000 watt infrared emitters that can be set in just about any position on its uniquely designed chassis. This will help to avoid having to buy the more expensive five cassette systems. The Mantaray 9000 digital can control each cassette independently. Other features allow the operator to set all of the final adjustments from behind the machine avoiding lengthy setup time. Use the Mantaray MR9000 on all coatings and adhesives for a fast and safe cure.

SPECS
Watts 9000(3000 per cassette)
Amps 37.5
Volts 240V
Ship. Wt. X lbs
Cassette 61"
Coverage Area 72" X 96"' @ 24" to 30" from panel
Control System Digital Controls
Element Type Quartz Radiant
